XT-190 Diffused Silicon Pressure Sensor Pressure Transducer
Product Details
XT-190 Diffused Silicon Pressure Sensor
An affordable, high-performance sensor for precise pressure measurement in industrial applications.
Product Features
- Cost-effective design.
- Measurement range: 0kPa ~ 35kPa to 100MPa.
- Supports gauge, absolute, and differential pressure measurement.
- Stable and reliable performance with excellent long-term stability.
- Compact isolation structure, suitable for various fluid media.
- φ19mm standard pressure-sensitive element.
- All-welded 316L stainless steel construction.
Applications
- Industrial process control
- Pressure monitoring systems
- Pressure calibrators
- Liquid level measurement
- Wave height measurement
- Aerospace pressure testing
- Gas and liquid pressure detection
- Control equipment and HVAC systems
Standard Operating Conditions
- Ambient temperature: (25 ± 1)°C
- Shock acceleration: ≤ 0.1g (1m/s²) Max
- Humidity: (50 ± 10)% RH
- Pressure range: (86 ~ 106) kPa
- Input current: (1.5 ± 0.0015) mADC
- Media temperature: (25 ± 1)°C
Electrical Performance
- Power supply: <2.0mA DC; ≤10V DC
- Electrical connection: 100mm silicone rubber cable
- Common-mode voltage output: Input at 50% (typical value)
- Input impedance: 2kΩ ~ 8kΩ
- Output impedance: 3kΩ ~ 6kΩ
- Response time (10% ~ 90%): <1ms
- Insulation resistance: 100MΩ, 100VDC
- Overpressure: 1.5x full scale
Technical Specifications
| Item | Min Value | Typical Value | Max Value | Unit |
|---|---|---|---|---|
| Nonlinearity | ±0.1 | ±0.2 | ±0.25 | %FS, BFSL |
| Repeatability | ±0.03 | ±0.05 | %FS | |
| Hysteresis | ±0.03 | ±0.05 | %FS | |
| Zero Output | - | ±2.0 | mVDC | |
| Full Scale Output | 50 | - | - | mVDC |
| Zero Temp Coefficient | - | ±0.01 | %FS/°C, Ref 25°C | |
| Span Temp Coefficient | - | - | ±0.01 | %FS/°C, Ref 25°C |
| Long-term Stability | - | ±0.25 | 0.3 | %FS/year |
| Operating Temperature | -40~125 | °C | ||
| Storage Temperature | -40~125 | °C | ||

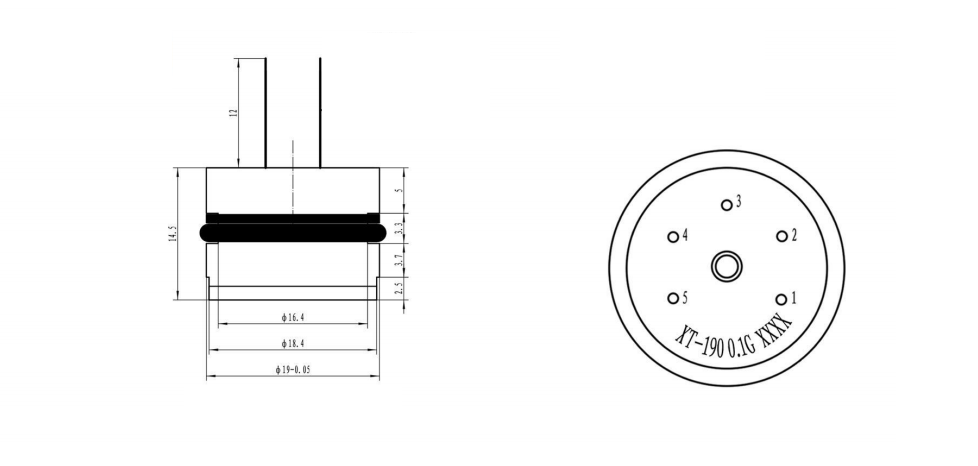

Structural Performance
- Diaphragm Material: 316L
- Filling Fluid: Silicone Oil
- Lead Material: 316L
- Lead Connection: Silicone Rubber Cable
- Weight: Approximately 25g
