TCA-DO Intrinsically safe solenoid driver

Comprehensive parameter
Maximum Bearable Experimental voltage: For input - output - power supply: 2.5 kV AC (50 Hz, 1 min., test voltage)

Protection parameter:
Power - on strike protection, power - on slow start: > 20 mS
Reverse polarity protection of power supply, reverse polarity of voltage: - 30V
Output protection, output clamp current: 25 mA (typical value)
Port misconnection and surge strike protection:
a. Between two terminals of the power supply - input - output circuit, the bearable external circuit voltage: < ±24 V
b. The virtual value per minute among input, output and power supply that can be borne: 2500 V, without damage
c. Short - circuit and open - circuit due to misconnection of terminals: Do not damage the instrument

Ambient temperature:
Operation: - 20 ~ + 60 °C
Storage or transport: - 40 ~ + 80 °C

Ambient humidity: 5 - 95% RH (non - condensing)

EMC standard: GB/T18268 (IEC61326 - 1)

Shell material: PC (Polycarbonate)+ABS material

Degree of protection: IP20

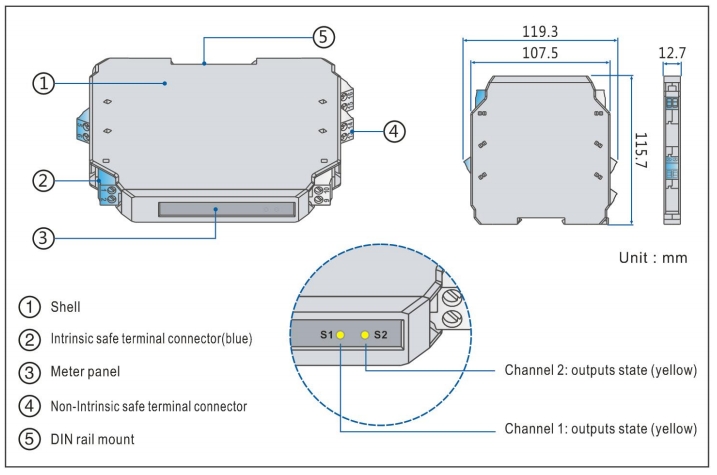

Dimensions: 12.7×119.3×115.7(mm)

Installation method: DIN rail type

TCA-DO is used to control the power supply in safe areas by means of the switch or logic level signal and drive intrinsically safe equipment on site in hazardous areas such as the electromagnetic valve and alarm.

Category：

Safety Barrier

Keywords：

Inquiry

Product Details

■ Overview

 TCA-DO is used to control the power supply in safe areas by means of the switch or logic level signal and drive intrinsically safe equipment on site in hazardous areas such as the electromagnetic valve and alarm.

Input characteristics:

The input signal consists of three types, i.e. contact, level and OC, of which the high level of the level input is > 5 V, and low level is < 1V. The saturation voltage drop of OC is < 1 V, and cut-off current is < 100 μA. When the input contact is closed, the input is at a low level, or the input OC is saturated, the output voltage is high value. Otherwise it is 0.

Output characteristics:

he output resistance value is around 267 Ω. The maximum output voltage is 24±0.7 V; the greater the output load current, the lower the output voltage is. When the load current is 45 mA, the output voltage is 12±0.7 V. When the load resistance decreases continuously or decreases to zero (short circuit), the maximum current limit value is 45+2 mA.

 Isolation among input, output and power supply, a virtual value of 2500 V per minute.

 Power supply range can be chosen within the range of 20-42 VDC or 15-42 VDC.

 LED indicators, Green: power indication, Yellow: output status, on when output circuit is active.

 Clamping type structure, a 35 mm DIN standard guide rail clamping type installation is used. Screw terminal, the wire is connected and fastened by M3 screws.

■ Model, model selection and ordering

Model selection example

Example 1. TCA-DO11-CE –V1……1-input & 1-output, intrinsically safe solenoid driver (contact switch input, 45mA/12V output; terminal power supply 20~42VDC)

Example 2. TCA- DO11-OE-V1 ……2-input & 2-output, intrinsically safe solenoid driver（OC input, 45mA/12V output; guide rail power supply 20~42VDC)

Note: if you select products with guide rail power supply, please order the special power supply DIN guide rail as well.

Optional accessories: Special power supply DIN guide rail (1 m/pc) PSDR-9000

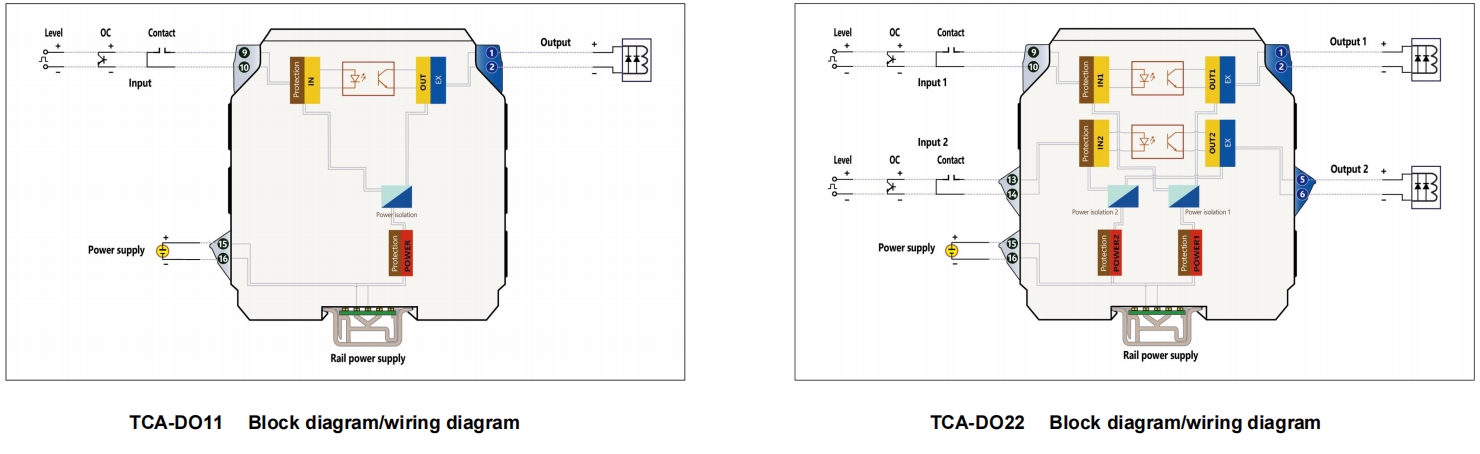

■ Block diagram/wiring diagram
